Digital Keys Contact Chip Card 0.76mm Flexible FPC Material
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A26 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Interface: | 7816 Interface (optional) | Waterproof Grade: | IP68 Industrial Waterproof |
|---|---|---|---|
| Number Of Keys: | 1 / Bits 5 Bits / 13 Bits | Layout Color: | GS Pantone Chromatography Shall Prevail |
| PCBA: | Use Flexible FPC Material | Thickness: | 0.76-1.0mm |
| High Light: | 0.76mm Contact Chip Card,FPC Contact Chip Card,0.76mm ic chip card |
||
Product Description

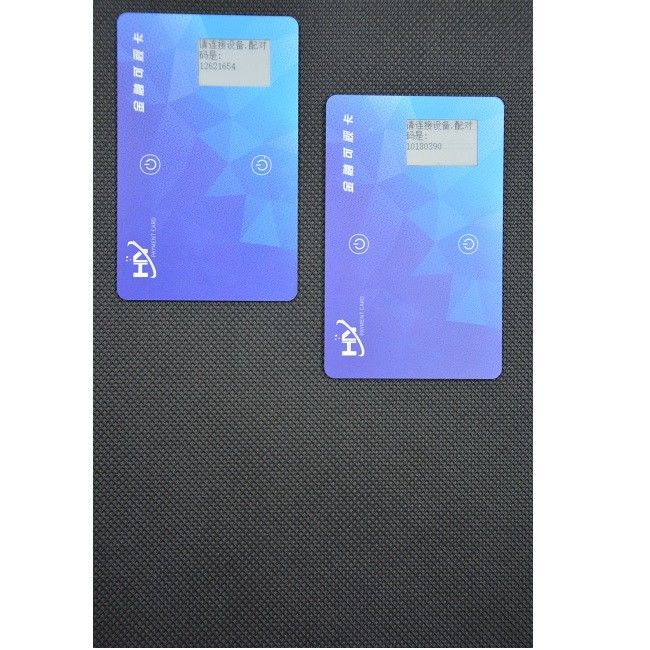

Digital Keys Contact Chip Card 0.76mm Flexible FPC Material
7816 chip embedded intelligent with digital keys
Product introduction: the chip embedded smart card with digital keys of Heyang technology uses 7816 chip, which can support the coexistence of two or more data channels at the same time, making the smart card more flexible and high-speed transmission of information with the device end; Enhanced support for applications on smart cards, which can not only support a single application on traditional smart cards, but also support multiple applications running on one card at the same time, making the use of smart cards more efficient. The process adopts the self-developed glue and cold pressing process technology to customize the card thickness at 0.84-3.0mm to realize the functions of ink screen information display, fingerprint operation and multi password key operation, and multiple encryption technology to provide users with the creation, storage, use and recovery of digital encryption asset private key with high security performance.ic chip card
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch / 2.13 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light (Color customizable) | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 1 bits / 5 bits / 13 bits(Customizable) | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Technical process description: independently invented patented technology, developed PCBA integrated packaging process, and successfully encapsulated ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen and other components into high-end smart card with high performance and high reliability at room temperature.
FAQ:7816 chip embedded intelligent with digital keys
1. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
2. Q: What about the lead time?
A: 3-5 days for sample preparation and 10-15 working days for mass production.
3. Q: How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
4. Q: How to deal with orders for integrated packaging of customized smart cards?
A: The customer provides the main components and design schematic diagram. Our company is responsible for PCBA optimization design, main / auxiliary material supply chain recommendation, overall cost budget, PCBA card sealing, and final finished PCBA smart card shipment.
B: The customer has PCBA circuit board and supporting materials. Our company is responsible for PCBA card packaging, electrical performance, reliability and other tests, and the final finished PCBA smart card is shipped.
C: The design idea is provided by the customer, and our company provides a variety of scheme design suggestions. After reaching an agreement, the design and production are carried out, and the final finished PCBA smart card is shipped.
5. Q: ls it OK to print my logo on smart card.
A: Yes. Please inform us formally before our production.
6. Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
