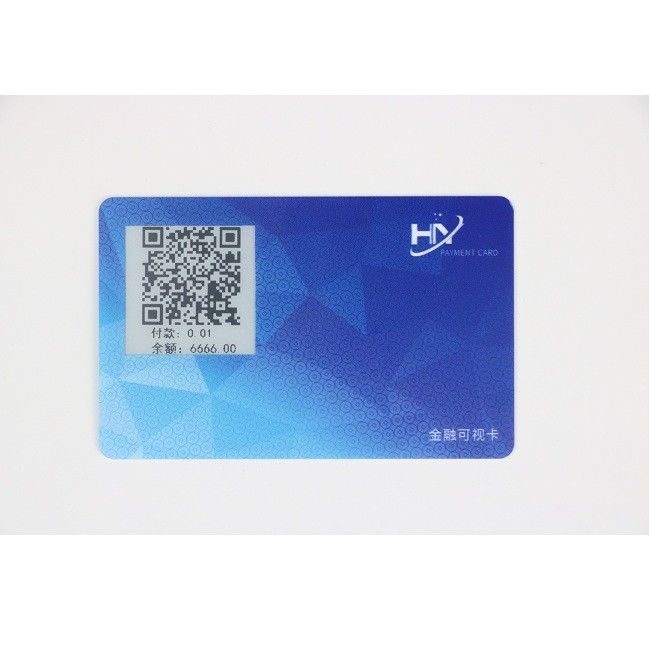

1.54 Inch Ink Screen Rfid Chip Card 7816 Embedded Solar Charging
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A036 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Waterproof Level: | IP68 Industrial Waterproof | Charging Mode: | Magnetic Suction, Wireless Charging, Solar Charging |
|---|---|---|---|
| Bluetooth Connectivity: | NRF52832 | Thickness: | 0.76-1.0mm |
| Card Size: | Optional | Battery Lifespan: | 3~5 Years |
| High Light: | 1.54 Inch Rfid Chip Card,7816 Chip Rfid Chip Card,1.54 Inch small chip card |
||
Product Description
1.54 Inch Ink Screen Rfid Chip Card 7816 Embedded Solar Charging
Use 1.54-inch ink screen and 7816 chip embedded smart card battery aye protection to better protect eyes
Product introduction: the current digital RMB is showing inclusiveness to a variety of payment technologies. Payment technologies that are safe enough and able to identify users are gradually applied to digital RMB, including a series of old and new payment technologies such as visual card, touch tag, fingerprint card and wearable devices. National banks such as China, industry, agriculture, transportation, construction and post have carried out exploration and experience of online and offline payment methods all over the country. At present, it has been pilot tested in transportation, salary payment, supermarket procurement, water and electricity payment, smart elderly care, poverty alleviation self-service vending machines and other scenarios. Derived from the traditional bank card to the visual smart bank card, Heyang visual financial payment card has rich product experience and product realization in the field of digital currency. The visual card is divided into active visual card and passive visual card. It can be attached with fingerprint and multi password key operation. Using the low-power lithium battery scheme, the product can realize solar charging and magnetic absorption charging. The self-contained ink paper screen realizes the real visual effect, can display the basic information of input and output and the information in the card, eliminates the trouble of reading information and viewing the information in the card through additional equipment, and allows users to understand the important information such as e-cash balance and transaction records in their card anytime and anywhere.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light (Color customizable) | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 2 bits / 5 bits(Customizable) | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Technical process description: independently invented patented technology, developed PCBA integrated packaging process, and successfully encapsulated ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen and other components into high-end smart card with high performance and high reliability at room temperature.
Feature:
1. The perfect combination of smart card and OTP, portable and easy to use.
2. Support NFC, ISO 7816 and other communication methods.
3. The application on PBOC e-wallet and Java Card 2.2.1 and Global Platform 2.1.1 can be customized.
4. As a time-based dynamic token supporting TOTP algorithm.
