Customized ISO7816 Smart Chip Card E Ink Printed Display 1.0mm thickness
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A034 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Thickness: | 0.76-1.0mm | Key: | Unit / Multi Position (customizable) |
|---|---|---|---|
| Layout Color: | GS Pantone Chromatography Shall Prevail | Application: | Banking, Security And Identification, Social Security Management, Health |
| Chip Type: | ISO7816 | NFC: | Optional |
| High Light: | ISO7816 Smart Chip Card,1.0mm Smart Chip Card,ISO7816 visa smart card |
||
Product Description

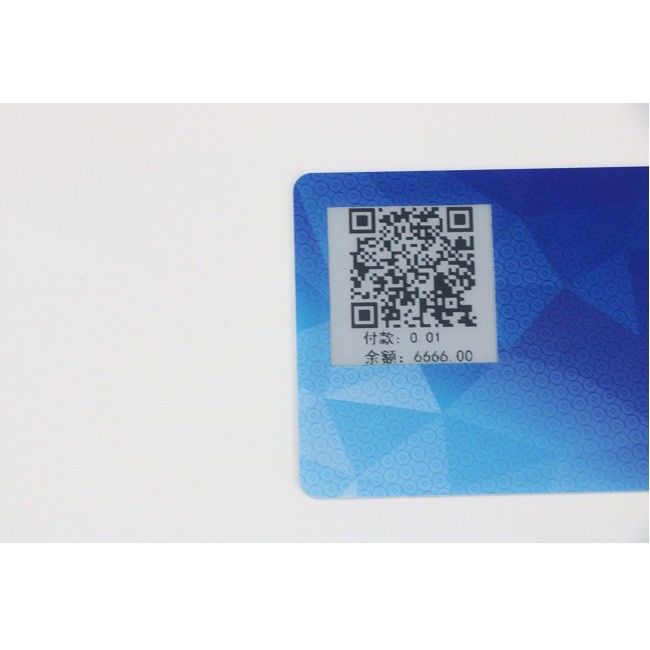

Customized ISO7816 Smart Chip Card E Ink Printed Display 1.0mm Thickness
Size non-standard customized 7816 and e-ink printed display chip embedded smart card
Product background: with the development of digital economy, China's cash utilization rate has shown a downward trend recently. According to the payment journal survey conducted by the people's Bank of China in 2019, the number and amount of mobile payment transactions accounted for 66% and 59% respectively, the number and amount of cash transactions were 23% and 16% respectively, the number and amount of bank card transactions were 7% and 23% respectively, and 46% of the respondents had no cash transactions during the survey period. Digital RMB meets diversified payment needs and helps to improve the efficiency and security of the payment system.visa smart card
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch / 2.13 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light (Color customizable) | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 1 bits / 5 bits / 13 bits(Customizable) | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Technical process description: independently invented patented technology, developed PCBA integrated packaging process, and successfully packaged ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen and other components into high-end smart card with high performance, high reliability, flat appearance and bending test compliance at room temperature. The current production capacity reaches 20000-30000 PCs.
Feature:
1. The perfect combination of smart card and OTP, portable and easy to use.
2. Support NFC, ISO 7816 and other communication methods.
3. The application on PBOC e-wallet and Java Card 2.2.1 and Global Platform 2.1.1 can be customized.
4. As a time-based dynamic token supporting TOTP algorithm.
