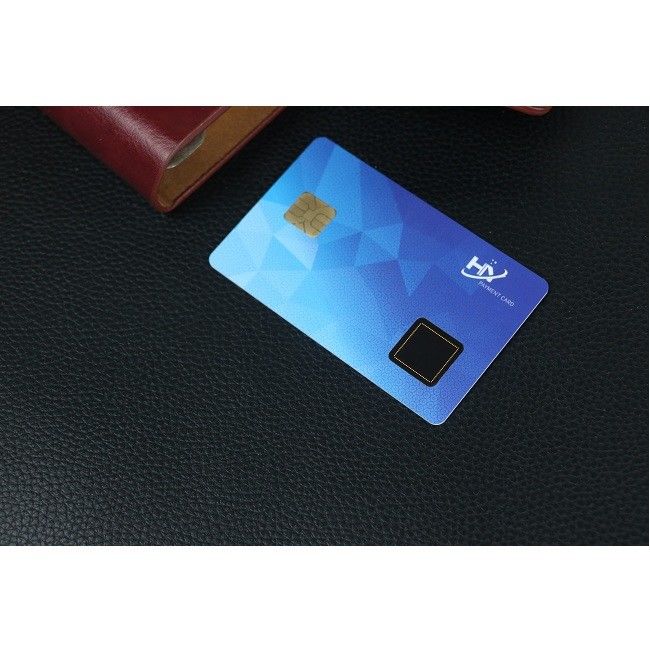

International Bank Standard Contact Chip Card ISO7816 Ultra Thin
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A031 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Ultra Thin Lithium Battery: | 0.4-1.5mm | Thickness: | 0.76-1.0mm |
|---|---|---|---|
| PCBA: | Use Flexible FPC Material | Waterproof Level: | IP68 |
| Appearance Color: | Customizable Layout | Interface: | 7816 Interface (optional) |
| High Light: | ISO7816 Contact Chip Card,ODM Contact Chip Card,ISO7816 small chip card |
||
Product Description
International Bank Standard Contact Chip Card ISO7816 Ultra Thin
International Bank standard ISO7816 chip ultra-thin smart card
Product introduction: the thickness of Heyang technology's financial visual card (digital currency Hard Wallet) is customized at 0.84-3.0mm to realize the functions of ink screen information display, fingerprint operation and multi password key operation; The product can adopt the low-power built-in lithium battery scheme to realize multi-mode selection such as solar charging, wireless charging or magnetic absorption charging. The smart card is a secure embedded smart chip card with independent display screen. The same password encryption algorithm is embedded in the banking system and the smart payment card to ensure that the password is generated synchronously, and then enter the one-time password generated by the smart payment card in the bank payment interface to enter the payment system. Smart payment card completes the function of more secure password system on the basis of ordinary bank card. The appearance is the same as that of ordinary banks, but the function is more perfect.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light (Color customizable) | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 1 bits / 13 bits(Customizable) | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Technical process description: packaging PCBA into smart card form has been a technical difficulty in the smart card industry for many years. The high temperature of traditional process will lead to lithium battery failure, component damage and other problems. Heyang technology began to establish a special scientific research team in 2014 to tackle PCBA card sealing technology through continuous research, We have developed relevant technologies and equipment for PCBA card sealing and corresponding glue formula, and successfully encapsulated ultra-thin lithium batteries, chips, solar panels, fingerprints, ink screens and other components or modules into high-end smart cards with high performance, high reliability, flat appearance and bending test standards at room temperature. At present, the daily production capacity reaches 20000-30000 PCs. with the continuous efforts of Heyang, The production capacity, process and performance are gradually improved and improved.
Features:
1. Power saving: use the button 45000 times in 3 years to generate 33000 otps.
2. Dynamic cryptographic calculus: the number and time algorithms are compatible with each other.
3. Electronic display screen: the password is clearly displayed on electronic paper.
4. Password display duration: 30 seconds, customized.
