Contactness Fingerprint Plastic RFID Card 128K Cold Pressure Process
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A0142 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Layout Features: | Print Clear Color Standard Color Difference | Coding Method: | Laser Code UV Code Flat Code Spray Code |
|---|---|---|---|
| Working Frequency: | 13.56mHz | Craft: | Cold Pressure Process |
| Storage: | 128K Bit （customizable） | Protocol: | AT24C128 |
| High Light: | 128K Plastic RFID Card,Fingerprint Plastic RFID Card,128K rfid enabled cards |
||
Product Description

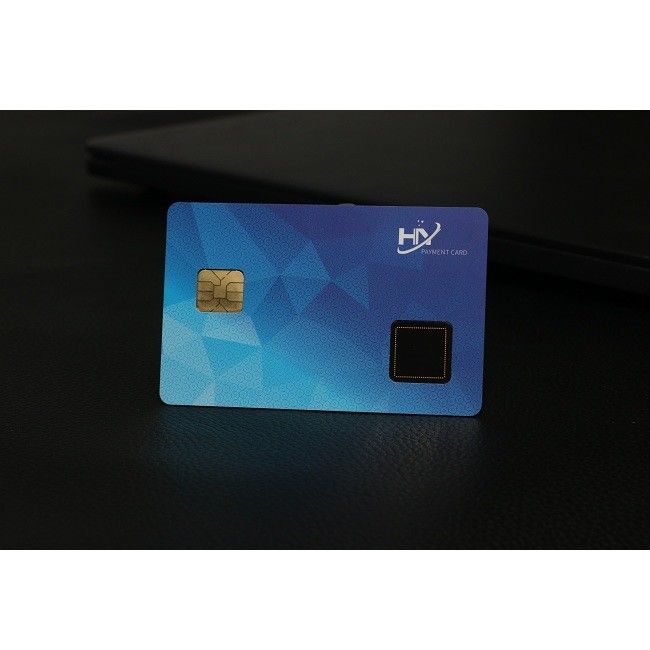

Contactness Fingerprint Plastic RFID Card 128K Cold Pressure Process
Contactness RFID CARD with fingerprint module size can be non standard
Product introduction: Contactness RFID CARD with fingerprint module, fingerprint module is a single and multi-person registration by the first manager, using a living organism in the card to distinguish fingerprint data, instantly compare, confirm the cardholder's identity, can be combined Bank card, deposit, credit card, NFC, action device payment, access control card access control, identifying the application of various uses of certification, avoiding financial losses caused by lost cards and stealing. The smart card size can be customized according to customer needs, and multiple modules in the card can be customized according to customer's use.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [purple, yellow] | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Frequency | High frequency | |
| Operating temperature | -20~70 ℃ | |
| Encapsulation material | PVC ABS PET PETG | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
PCBA seal process: Package the PCBA into a smart card form, has always been a smart card industry for many years of technical difficulties, and the high temperature melting of the traditional smart card production process has not been able to meet the PCBA cable card, and the high temperature of traditional processes will cause the lithium battery. Component damage and other issues. Thus, the cold pressure technology is introduced, and the cold pressure technology refers to the control of the laminated temperature through the temperature control debugging equipment of the refrigerator. The debugging device can clearly grasp the temperature of the internal lithium polymer battery and transmit the instruction to the terminal, thereby effectively Control lamination temperature and lamination time.
FAQ: Contactness RFID CARD with fingerprint module size can be non standard
1. Q: Are you a manufacturers or trading company?
A: We are a manufacturers.
2. Q: How about the delivery time?
A: Sample order: 3-15 working days after paid for customized products.
Batch order: 10-15 working days as per order quantity after paid.
3. Q: ls it OK to print my logo on smart card.
A: Yes. Please inform us formally before our production.
4. Q: How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
5.Q: How is your quality control?
A: Stabilized material supplier of strictly screening before production ensures the quality of the product from the source.
B: Production: Adopt new automatic quality inspection equipment to improve production efficiency, while fast sorting.
C: After production: artificial one strict quality inspection, ensuring 100% pass rate, does not allow the order to flow to the market.
6.Q: What is the material of the smart card?
A: It can be PVC ABS PET PETG, etc. can be customized according to your needs.
