Cold Pressure Method RFID Chip Debit Card 13.56mhz For Event Commemoration
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A0117 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Frequency: | High Frequency | Encapsulation Process: | Integrated Package |
|---|---|---|---|
| Operating Temperature: | -20~70 ℃ | Thickness: | 0.76-1.4mm |

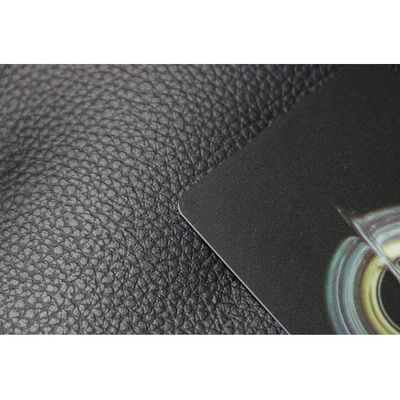

| Layout Texture: | Frosted Surfaceand Matte Surface (customizable) | Screen: | 1.02inch , 1.54 Inch ，2.13 Inch , 2.7inch(customizable) |
| High Light: | 13.56mhz RFID Chip Debit Card,ODM RFID Chip Debit Card,13.56mhz rfid chip card |
||
Product Description

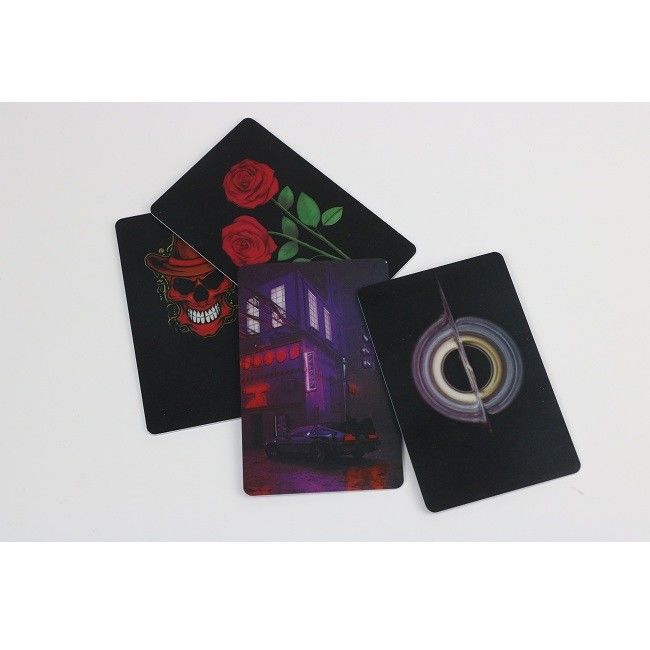

Cold Pressure Method RFID Chip Debit Card 13.56mhz For Event Commemoration
Cold pressure method to make RFID NFC smart cards for event commemoration
Product introduction: He Yang Technology adopts cold pressure process production, has born new products that lead the industry - color smart card, card animation color reaches 10 or more, on the basis of PCBA smart card, plus specific animation, with The designed personalized version of the design is presented on a smart card, and the display is reflected in text, graphics logo, letters. The card uses F50 / F08 and other high-security RFID chips, and the finished product is packaged into a colorful smart card with a thickness of 0.9-1.4mm. It can be customized for the use of VIP membership cards, large-scale event commemorative cards, and personalized identification cards for special occasions (bus cards, big enterprise units). Customized according to customer needs.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.54 inch / 2.13 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [red, green] | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Frequency | High frequency | |
| Operating temperature | -20~70 ℃ | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Cold pressure seal process: In the conventional industrial process, it is mainly hot-laminated, but due to changes in the market demand, the traditional thermal lamination has not followed the demand of the times, thus introducing cold pressure technology. The cold pressure technology refers to the control of the laminated temperature by the temperature control debugging device through the refrigerator. The debugging device can clearly grasp the temperature change temperature of the internal lithium polymer battery and transmit the instruction to the terminal, thereby effectively controlling the lamination temperature and the layer. Pressure time. Breaking traditional hot pressing (PCBA) with autonomous research and development, in-card embedded circuit board PCB, thin batteries, Bluetooth modules, block chains, switch and other components, can be widely used in communication, finance Payment, object positioning and other fields. The card thickness can be thin to 0.84 mm, and it is easy to easily. At the same time, it is customizable to add an electronic ink display, fingerprint module, NFC, RFID, buzzer, etc. to achieve specific application functions.
FAQ: Cold pressure method to make RFID NFC smart cards for event commemoration
1.Q: How do I place an order?
A: Please provide you with the details of your requirements as clear as possible.
For design or further discussion, if there is any delay, it is best to contact us by email / telephone.
2.Q: What are the field of RFID smart card?
A: Can be widely used in urban card, bus, subway, light rail, domestic and foreign well-known hotel card, attendance, access control system, enterprise card system, commercial retail, insurance medical, health, school, residence certificate, driver management and other radiofrequency Identification field.
3.Q: What is the characteristics of the RFID smart card?
A: The characteristics of the RFID smart card are swipe the lights, color animations, and light and delicate, and demonstrate personality.
4.Q: How much is the read and write distance of the RFID smart card?
A: 0-5M The approach is related to the working environment and the reader.
5. Q: ls it OK to print my logo on smart card.
A: Yes. Please inform us formally before our production.
6. Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
