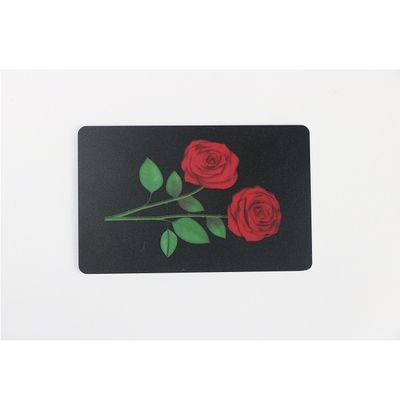

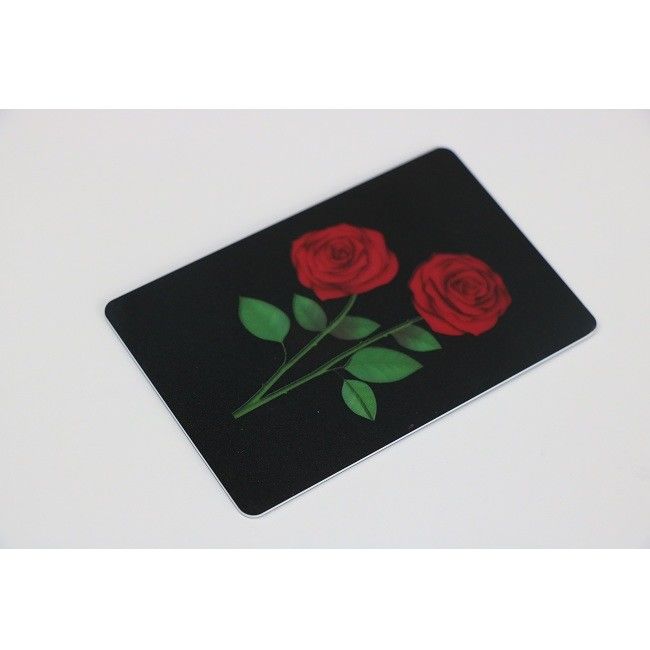

F05 F08 Chip RFID NFC Card 13.56mHz Active Passive Rfid Plastic Cards
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A0126 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Frequency: | High Frequency | Encapsulation Process: | Integrated Package |
|---|---|---|---|
| Operating Temperature: | -20~70 ℃ | Layout Features: | Print Clear Color Standard Color Difference |
| Coding Method: | Laser Code UV Code Flat Code Spray Code | Working Frequency: | 13.56mHz |
| High Light: | 13.56mHz RFID NFC Card,F05 RFID NFC Card,13.56mHz Rfid Plastic Cards |
||
Product Description
F05 F08 Chip RFID NFC Card 13.56mHz Active Passive Rfid Plastic Cards
F05 F08 chip high standard high security and high performance RFID NFC smart card
Product introduction: Smart card uses F50 / F08 equivalent RFID chip, finished product package into a colorful smart card with a thickness of 0.9-1.4mm. It can be customized for the use of VIP membership cards, large-scale event commemorative cards, and personalized identification cards for special occasions (bus cards, big enterprise units). F05R is a small volume, low power, low voltage micro power transmitter module, ASK mode modulation, and SMT production process, the sound resonator is stable and compliant with the FCC certification standard. It is especially suitable for short-range wireless remote alarms and single-chip data transmission. The FM11RF08 is the first non-contact chip development of Fudan Microelectronics, which is 1K x 8bits, which is in line with ISO14443 -A international standard, with a working frequency of 13.56MHz, and the working distance is not less than 10cm. FM11RF08 with triple anti-counterfeiting authentication, including encryption control and communication logic circuits, is a multi-purpose non-contact RF card chip with extremely high confidentiality and logic processing functions, which can be widely used in low-cost urban rail transit, various billing Payment card and data acquisition system and other fields.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch / 2.13 inch / 2.7 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [ red, yellow ] | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Frequency | High frequency | |
| Operating temperature | -20~70 ℃ | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
PCBA seal process: Package the PCBA into a smart card form, has always been a technical difficulty in the smart card industry, and the high temperature of traditional processes will lead to the failure of lithium batteries, and the corruption of components, and the technology begins to establish a special research team in 2014. The PCBA seal technology will be developed through continuous research, developing related technologies and equipment for the PCBA seal and the corresponding glue formulas, using the multi-year PCBA seal technology results, successfully realized ultra-thin lithium battery, chip, Solar panels, fingerprints, ink screens, etc. , Production capacity, process, performance, gradual improvement and improvement.
FAQ: F05 F08 chip high standard high security and high performance RFID NFC smart card
1.Q: How much is the read and write distance of the RFID smart card?
A: 0-5M The approach is related to the working environment and the reader.
2.Q: What is the shape of the smart card?
A: It can be a standard card L * W: 85.6 * 54mm / shaped card, which can be customized according to requirements.
3.Q: What is the material of the smart card?
A: It can be PVC ABS PET PETG, etc., can be customized according to your needs.
4. Q: How is your quality control?
A: Stabilized material supplier of strictly screening before production ensures the quality of the product from the source.
B: Production: Adopt new automatic quality inspection equipment to improve production efficiency, while fast sorting.
C: After production: artificial one strict quality inspection, ensuring 100% pass rate, does not allow the order to flow to the market.
5. Q: How can I get some samples?
A: Please feel free to contact us by email for sample requirements. We are honored to provide you with samples for testing and inspection.
PS: Require Samples?
Please feel free to contact us via e-mail for any samples.
