1.39 Inch Dot Mapping Embedded Smart Card With Fingerprint Sensor
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A058 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Battery Thickness: | >80mah (as Required) | PCBA Material: | Use Flexible FPC Material |
|---|---|---|---|
| Card Thickness: | 0.76-1.0mm | State Of Charge: | Chargeable |
| Keystoke: | Unit / Multi Position | Visual Screen: | Electronic Paper / Glass / OLED Screen |
| High Light: | 1.39 Inch Embedded Smart Card,0.76mm Embedded Smart Card,1.39 Inch fingerprint id card |
||
Product Description

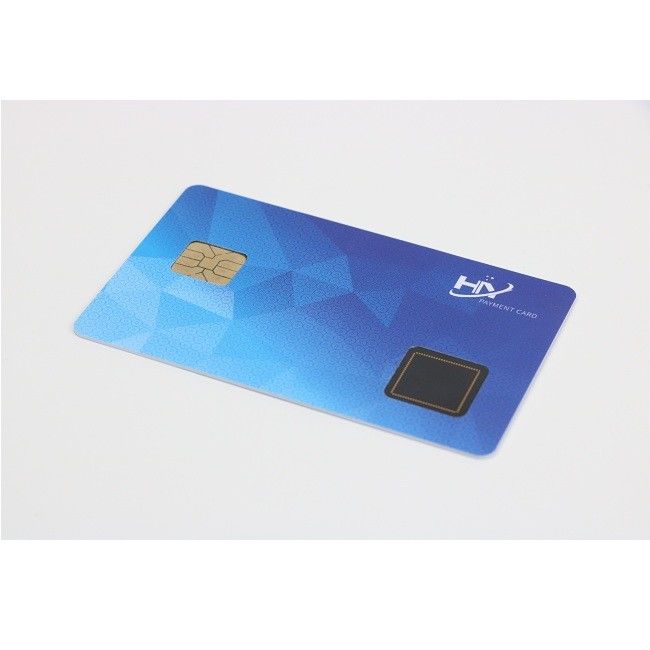

Fingerprint Smart Card: 1.39 Inch Dot Mapping Embedded Smart Card With Fingerprint Sensor
Embedded smart card with 1.39-inch dot mapping and fingerprint module
Fingerprint Smart Card Introduction:
Taking the fingerprint smart card with independently developed glue and cold press technology, customize the thickness of the card at 0.84-3.0mm, realize the ink screen information display, the screen size is diversified, can be customized, fingerprint operation and multiple passwords Button operation function; the product can be used with low-power built-in lithium battery solutions to achieve multi-way options such as solar charging, wireless charging, and magnetic charging.
|
Fingerprint Smart Card Parameters |
Fingerprint Smart Card Type | Active / passive |
| Item Name | Fingerprint smart card | |
| Display Screen | Electronic Paper / Glass | |
| Button | 5 bits / 13 bits | |
| Interface | 7816 interface (optional) | |
| Battery Lifespan | 3 ~ 5 years | |
| Time Interval | 30/60 seconds | |
| Thumbprint module | IDEX/FPC | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Fingerprint Smart Card Technical Process Description:
In the conventional industrial process, it is mainly based on thermal lamination, but due to changes in the market, the traditional thermal lamination has not followed the demand of the times, thereby introducing cold pressure technology. He Yang Technology has begun to establish a special scientific research team in 2014. Technical results, successfully achieved ultra-thin lithium battery, chip, solar panel, fingerprint, ink screen and other components or modules are encapsulated into high-end smart cards with high performance, high reliability, appearance, and bending test.
Fingerprint Smart Card Function:
1. Electronic ink screen , information display and confirmation of account number during payment.
2. NFC module , realize "touch and touch collection and payment" and "double offline payment" between cards.
3. Bluetooth module , connect with mobile phone to realize information synchronization. In addition, the card is also equivalent to ukey security cipher we usually use.
4. Wireless charging , magnetic suction charging , multi-functional charging mode, more convenient for users.
5. Digital keys (mechanical / touch keys) , the necessary functions of multi-function cards, the input way of passwords and amounts.
6. Se security chip , encryption algorithm, ensuring payment security and difficult to crack.
7. Ultra thin lithium battery , non-contact card, power source, solid-state safety lithium battery.
Fingerprint Smart Card Application:
Widely used in prison management systems, security systems, financial systems, personnel positioning systems, new generation campus card systems, urban traffic cards and other occasions.
