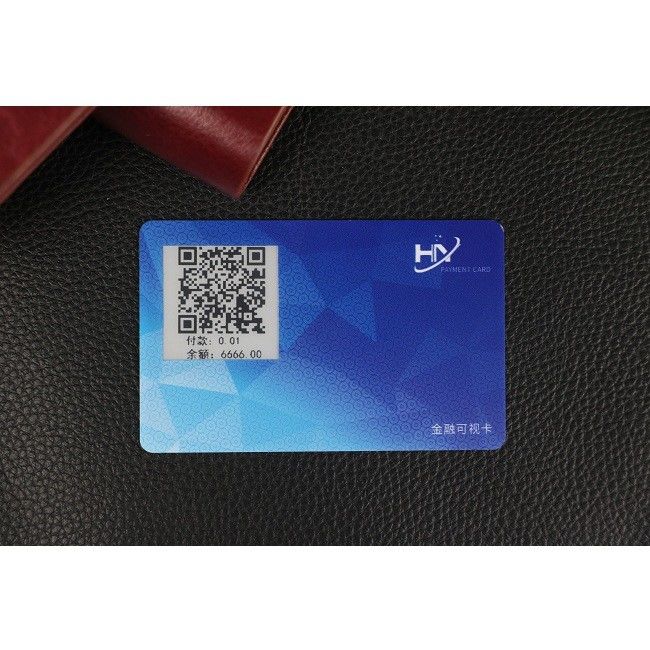

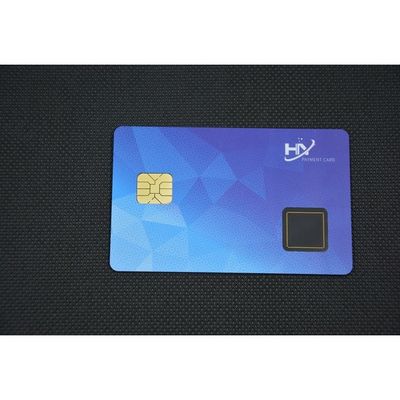

1.54 Inch Ink Screen Blank Fingerprint Cards FPC Rechargeable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A056 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Battery Thickness: | >80mah (as Required) | Card Size: | 54*85.6mm ( Customizable ) |
|---|---|---|---|
| Card Thickness: | 0.76-1.0mm | State Of Charge: | Rechargeable |
| Display Resolution: | 152(H)*152(V) Pixel | Active Area: | 27.512*27.512 Mm |
| High Light: | 1.54 Inch Blank Fingerprint Cards,FPC Blank Fingerprint Cards,7816 blank fingerprint card |
||
Product Description
Fingerprint Smart Card: 1.54 Inch Ink Screen Blank Fingerprint Cards FPC Rechargeable
Use 1.54 inch ink screen with FPC fingerprint smart card
Fingerprint Smart Card Introduction:
Smart card with screen and fingerprint, the fingerprint smart card includes a circuit board and an external circuit and a press-based fingerprint sensor, and a pressed fingerprint sensor, etc., and the FPC fingerprint module adds a smart card of the ink screen, which can be directly on the card Implement fingerprint collection and verification, both operation, guarantees the safety of smart cards, so widely used in banking systems, security systems, access control systems, prison management, blank fingerprint cards, etc.
|
Fingerprint Smart Card Parameters |
Item Name | Fingerprint smart card |
| Display Resolution | 152(H)×152(V) Pixel | |
| Active Area | 27.512×27.512 mm | |
| Display Screen | Electronic Paper / Glass | |
| Button | 5 bits / 13 bits | |
| Interface | 7816 interface (optional) | |
| Battery Lifespan | 3 ~ 5 years | |
| Time Interval | 30/60 seconds | |
| Thumbprint module | IDEX/FPC | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Fingerprint Smart Card PCBA Seal Process:
Package the PCBA into a fingerprint smart card form, has always been a smart card industry for many years of technical difficulties, and the high temperature melting of the traditional smart card production process has not been able to meet the PCBA cable card, and the high temperature of traditional processes will cause the lithium battery. Component damage, etc., combined with autonomous invention patent technology, research and development of PCBA integrated packaging processes, successfully achieved ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen, etc., is encapsulated at normal temperature, High-reliability high-end smart card.
