IP68 Rechargeable OTP Security Card Magnetic Suction 1.4mm Thickness
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | B0002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Thickness: | 0.76-1.4mm | Screen: | 1.02inch , 1.54 Inch ，2.13 Inch , 2.7inch(customizable) |
|---|---|---|---|
| Hardware Design: | Schematic Diagram And PCB File Drawing | State Of Charge: | Rechargeable |
| Waterproof Level: | IP68 | Ultra Thin Lithium Battery Thickness: | 0.4-1.5mm |
| Charging Mode: | Magnetic Suction, Wireless Charging, Solar Charging | Card Body Shape: | Standard Card L * W: 85.6 * 54mm / Shaped Card |
| High Light: | IP68 Rechargeable OTP Security Card,1.4mm Thickness OTP Security Card,Magnetic Suction OTP Display Card |
||
Product Description
OTP Smart Card: Ultra-long Battery Life Ink Security Smart Card, Positioning A Smart Card In Various Shapes
OTP Smart Card Introduction:
Heyang uses the technology developed for many years to upgrade the hardware structure and production technology of the OTP Smart Card. Loading centimeter-level positioning functions in thin and light products makes the products have the characteristics of wide application and high expansion. Moreover, the use and deployment of the product are simple, the maintenance cost is low, and the use is accurate and convenient. The OTP smart card is equipped with an ultra-thin rechargeable lithium battery, which is a paper battery, which can last for three months when fully charged. It will also issue a warning when the battery is low, which is convenient and worry-free.
| OTP Smart Card Parameters | OTP Smart Card Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [black,white,red] | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mAh (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |

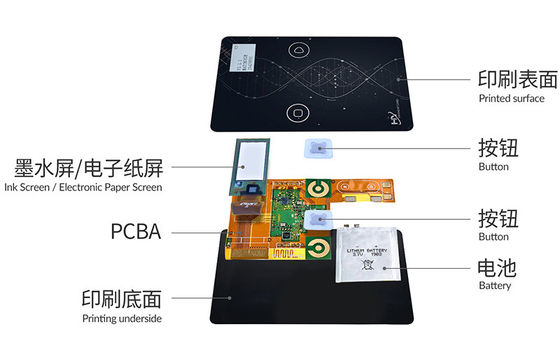

OTP Smart Card Sealing Process:
PCBA encapsulated into a smart card form, has always been a smart card industry technical difficulties for many years, the traditional smart card technology used in high temperature melting PVC way already cannot satisfy the PCBA/PCB fabrication, the traditional process of the high temperature will lead to failure, damage to the components, such as lithium-ion batteries, and Yang by independent invention patent technology, research and development of PCBA integration encapsulation process. It has successfully encapsulated ultra-thin lithium batteries, chips, solar panels, fingerprint modules, ink screens and other components into high-end cards with high performance and reliability at room temperature.
OTP Smart Card FAQ:
1. Q: Are you a manufacturers or trading company?
A: We are a manufacturers.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen, Guangdong Province, China, about 1 hours by train from Hongkong. Warmly welcome oversea or domestic clients to visit our factory.
3. Q: How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
4. Q: How about the delivery time?
A: Sample order: 3-15 working days after paid for customized products.
Batch order: 10-15 working days as per order quantity after paid.
5. Q: ls it OK to print my logo on smart card.
A: Yes. Please inform us formally before our production.
6. Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
