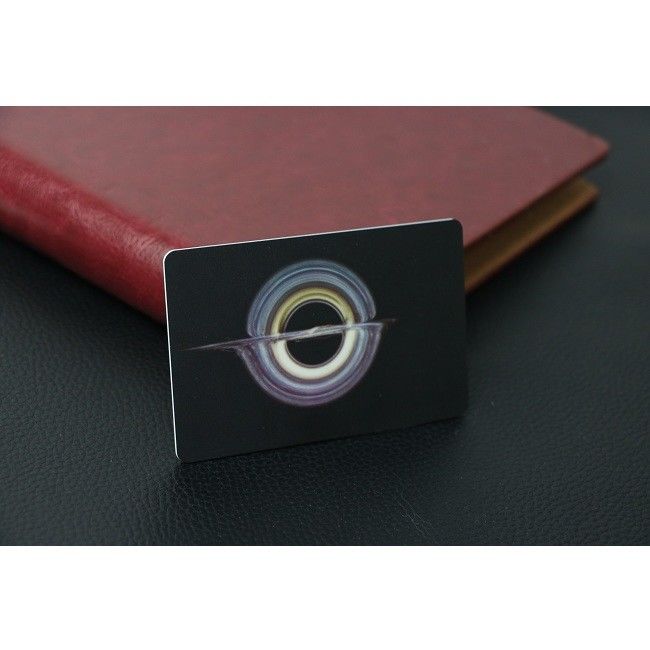

Ultra Thin Lithium Battery Wallet Finder Card 0.76mm Bluetooth Anti Lost Device
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A0176 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Distance: | 20-60M (related To Environment Mobile Phone Signal) | Position: | Bluetooth |
|---|---|---|---|
| Standby Time: | 12 Months | Thickness: | 0.76-1.4mm |
| Layout Texture: | Frosted Surfaceand Matte Surface (customizable) | Screen: | 1.02inch , 1.54 Inch ，2.13 Inch , 2.7inch(customizable) |
| High Light: | 0.76mm Wallet Finder Card,ODM Wallet Finder Card,0.76mm bluetooth 4.0 anti lost device |
||
Product Description
Ultra Thin Lithium Battery Bluetooth Anti Lost Device 0.76mm
Ultra thin lithium battery chargeable Bluetooth Anti Lost Device
Product introduction: Heyang technology anti-lifting machine uses ultra-thin lithium batteries, reusable, low power consumption. The Bluetooth 4.0 anti-lender is based on the GB2540 module design. GB254X is a high-performance, ultra-low power consumption (Bluetooth Low Energy) radio frequency transceiver system module, which uses the US Texas Instrument TI Bluetooth 4.0 CC2540 or CC2541 as the core processor. Follow the low-power Bluetooth protocol, suitable for single-mode low power Bluetooth application.
| Product parameters | Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch / 2.13 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [red, green] | |
| Interface | 7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Working frequency | 13.56mHz | |
| Distance | 20-60M (related to environment mobile phone signal) | |
| Encapsulation material | PVC ABS PET PETG (Select) | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
PCBA seal process: Package the PCBA into a smart card form, has always been a smart card industry for many years of technical difficulties, and the high temperature melting of the traditional smart card production process has not been able to meet the PCBA cable card, and the high temperature of traditional processes will cause the lithium battery. Component damage and other issues. Traditional thermal laminated compression can't keep up with the needs of the times, leading to cold pressure technology. The cold pressure technology refers to the control of the laminated temperature by the temperature control debugging device through the refrigerator. The debugging device can clearly grasp the temperature change temperature of the internal lithium polymer battery and transmit the instruction to the terminal, thereby effectively controlling the lamination temperature and the layer. Pressure time. Can be widely used in communication, financial payment, object positioning and other fields.
FAQ: Ultra thin lithium battery chargeable Bluetooth Anti Lost Device
1. Q: Are you a manufacturer or a trading company?
A: We are manufacturers.
2. Q: Where is your factory? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong Province, China. It takes about 1 hour by train from Hong Kong. Warmly welcome customers at home and abroad to visit us.
3.Q: Is there a positioning function? Can you find a distance? Is it a traffic card?
A: The product can be connected to the mobile phone through the Bluetooth link, there is a positioning function, which can be found far away, and does not need to load the flow card.
4.Q: How far is the safe distance? How far will you send?
A: 20-60 meters, according to the environment, signal and other factors.
5.Q: Is it charging? How long can a battery can be used?
A: The product uses a lithium battery, which can be reused, and it is charged once 3 months.
6.Q: Can this also use a Bluetooth headset? A mobile phone can link several devices?
A: Yes, a mobile phone can generally connect 4-6 Bluetooth devices simultaneously.
7.Q: Is it waterproof? What should I do with water?
A: Products use IP68, industrial grade waterproof.
