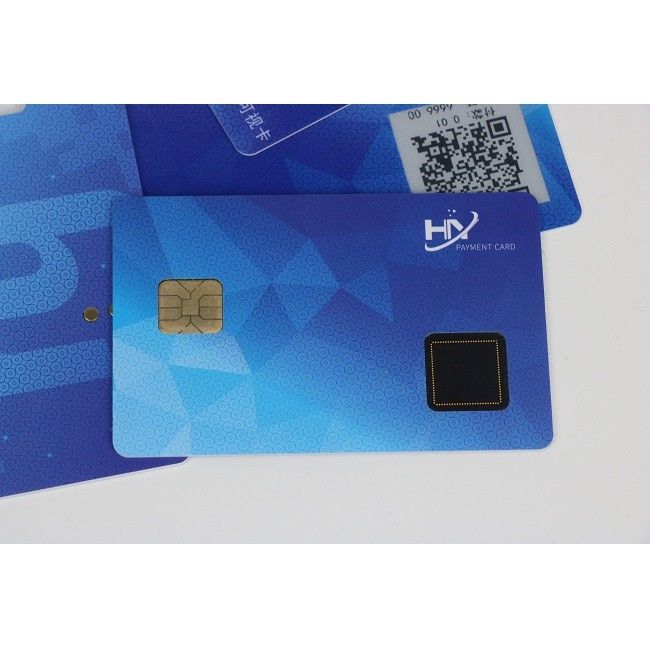

IP68 Waterproof Bluetooth Credit Card With Fingerprint Sensor
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A091 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Card Body Shape: | Customizable | Security Chip: | F05 / F08 Guest Designated |
|---|---|---|---|
| Confirmation Module: | Buttons / Fingerprints (Customizable) | Key: | Unit / Multi Position (customizable) |
| Card Body Thickness: | 0.76-1.0mm | Layout Color: | Customizable |
| High Light: | IP68 Bluetooth Credit Card,0.76mm Bluetooth Credit Card,IP68 fingerprint credit card |
||
Product Description
IP68 Waterproof Bluetooth Credit Card With Fingerprint Sensor
The highest level protection Bluetooth smart card fast security positioning card
Product introduction: Smart card multi-function applications are also an important advantage, the chip uses a computer frame structure, which can achieve different functions. Therefore, in a large-capacity chip, in addition to payment function, additional functions, such as identity authentication, integral programs, etc., making bank cards to achieve greater application value in risk management and other business functions. Using self-developed glue and cold press technology, the ink screen information display, fingerprint operation, and multi-bit password button operation functions are implemented.
| Product parameters | Type | Active / passive |
| Confirmation module | Buttons / Touch / Fingerprints (Customizable) | |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | GS Pantone chromatography shall prevail | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [ blue, green] | |
| Interface | M7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits (optional) | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
Technical Process Description: He Yang Technology has begun to set up a special scientific research team in 2014, and the PCBA seal technology will be related to continuous research, developing related technologies and equipment for PCBA seals and corresponding glue formulations, using autonomous invention patents. Technology, research and development of PCBA integrated packaging process, successfully achieved ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen, etc., in normal temperature, high-end smart card with high performance, high reliability.
