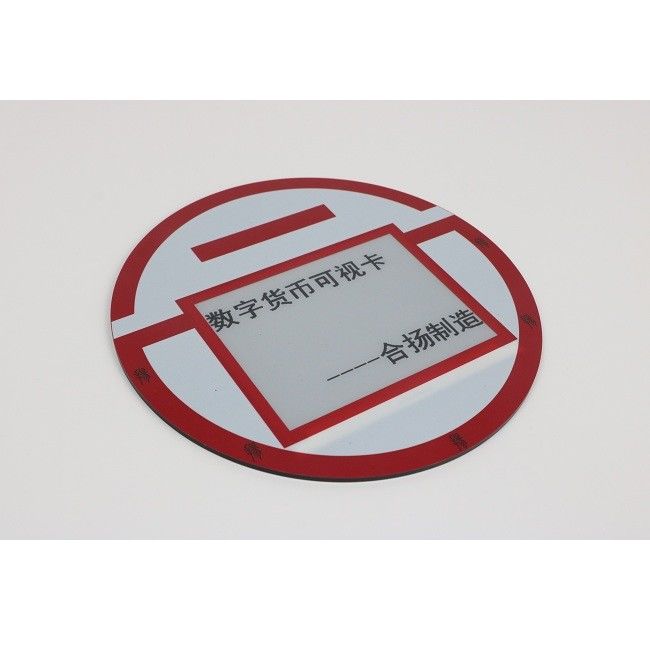

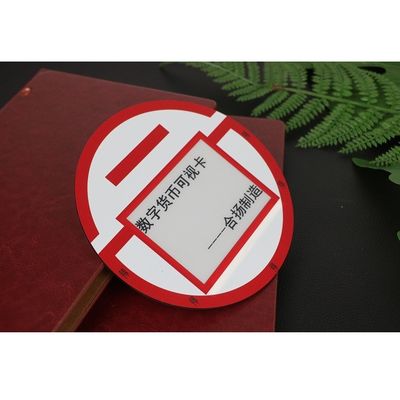

OTP Bidirectional Authentication E Ink Smart Card 13.56mhz RFID
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A070 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Product Name: | Ink Screen Smart Card | Button Bit Number: | 1-13 Bits Can Be Selected |
|---|---|---|---|
| Application Range: | Finance, Travel, Telecommunications | Encapsulation Material: | Customizable |
| Hardware Design: | Schematic Diagram | Main Components (safety Chips) SE: | Huada / Violet / National |
| High Light: | OTP E Ink Smart Card,13.56mhz E Ink Smart Card,OTP RFID Smart Card |
||
Product Description
E Ink Smart Card: OTP Bidirectional Authentication E Ink Smart Card 13.56mhz RFID
Embedded ink screen intelligent card for electronic ink screen and OTP bidirectional authentication
E Ink Smart Card Introduction:
Complete financial visual card (Digital currency hard purse) is used in US E-Ink electronic paper screen, flexible and ultra-thin characteristics, bring a better experience for the product, users can customize the selection to display payment 2D Information, account balance, transaction details, etc., and load dynamic password according to customer needs. There is any equipment with barcodes, EMV chips, magnetic strips or NFC technology in the user's wallet, can store the smart card, in a single encrypted chip in the E Ink smart card, so that the user can't worry, let the user wallet big slim. When conducting online banking, mobile banking, telephone bank transfer, choose to use visual card to authenticate, card generation and display dynamic token transaction authentication data on the electronic paper screen, and realize the identity authentication of banks . In this way, it greatly improves the security of cardholders online transfer and payment.
|
E Ink Smart Card Parameters |
E Ink Smart Card Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch / 1.39 inch Section screen / dot screen | |
| Appearance color | GS Pantone chromatography shall prevail | |
| Thumbprint module | IDEX/FPC | |
| Data storage period | 100 years | |
| Beacon tips | Led prompt light [ red , blue , green , yellow ] | |
| Interface | M7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
E Ink Smart Card Process Manufacturing:
Package the PCBA into a smart card form, has always been the technical difficulties of smart card industries, our company has breakthrough in hardware design, using the related technologies and equipment of the PCBA seal card in the production process and the corresponding glue; Integrate so many functions in one card; while maintaining the high performance, high reliability, appearance of the product, and is also a standard in the bending test; the cold pressure process is perfectly integrated with the overall hardware structure, reaching in quantization production The good rate is over 98%. At present, it can reach 20000-30000PCS, under the continuous efforts, production capacity, process, performance is gradually improved and improved.
E Ink Smart Card feature:
1. The perfect combination of smart cards and OTP, easy to use.
2. Support NFC, ISO 7816 and other communication methods.
3. Customizen of the People's Bank of China, e-wallet and Java Card 2.2.1, and applications on the Global Platform 2.1.1
4. As a time-based dynamic token that supports TOTP algorithm.
5. Electronic display, password is clearly displayed on electronic paper.
6. Power saving, use buttons for 3 years 45,000 times to generate 33000 OTPS.
