0.84mm Thickness E Ink Smart Card OTP Bank Card M7816 Interface
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A068 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Product Name: | OTP Bank Card | Chip Model: | AT24C128 ( Optional ) |
|---|---|---|---|
| Application Range: | Finance, Travel, Transportation, Telecommunications | Product Type: | Customizable |
| Encapsulation Material: | ABS PETG ( Optional ) | Data Save: | 100 Years |
| High Light: | 0.84mm E Ink Smart Card,80mah E Ink Smart Card,0.84mm OTP Bank Card |
||
Product Description

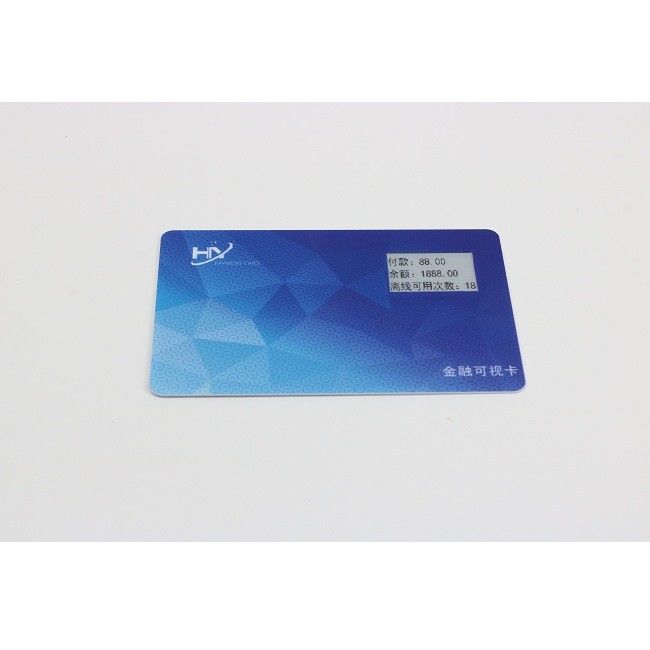

E Ink Smart Card: 0.84mm Thickness E Ink Smart Card OTP Bank Card M7816 Interface
0.84mm thickness standard bank card ink screen smart card
E Ink Smart Card Introduction:
E Ink Smart Card, Khaki built-in battery can support 7000 to 8000 times, 5 years can be used, which is consistent with the validity period of the credit card. In addition to real-time display of electronic wallets, there is also a traditional bank card all functions. The card comes with a display, with a secure authentication (dynamic token) function, making the cardholder daily large payment safer. With independently developed glue and cold pressure process technology, the card thickness is customized at 0.84-3.0mm, realize the ink screen information display, fingerprint operation, and multi-bit password button operation function; the product can use low-power built-in lithium battery solution to achieve solar energy Charge, wireless charging or magnetic charging.
|
E Ink Smart Card Parameters |
E Ink Smart Card Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | GS Pantone chromatography shall prevail | |
| Thumbprint module | IDEX/FPC | |
| Data storage period | 100 years | |
| Beacon tips | Led prompt light [ red , blue , green ] | |
| Interface | M7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
E Ink Smart Card Process Manufacturing:
Our Division breaks through the limitations in hardware, using the related art and equipment of the self-developed PCBA seal card in the production process, and the corresponding glue; to integrate so many functions; while maintaining the high product Performance, high reliability, appearance, and reach the standard in the bending test; the cold pressure process is perfectly fused with the overall hardware structure, and the improvement rate is more than 98% in quantization production.
E Ink Smart Card FAQ:
0.84mm thickness standard bank card ink screen smart card
1. Q: Are you a manufacturers or trading company?
A: We are a manufacturers.
2. Q: How does your factory do regarding quality control?
A: Quality first. Dingzhan people always attach great importance to quality control from the beginning to the end. Our factory has passed CB and ROHS certification.
3. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
4. Q: Can we costomize the size, color, logo and package of the product?
A: Yes, all of these can be cusomized according to your needs.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size of your order.
PS: Require Samples?
Please feel free to contact us via e-mail for any samples.
